JA592 – Automatic gate control unit GENIUS compatible FAAC 455D 452 MPS 401 402 450 MPS

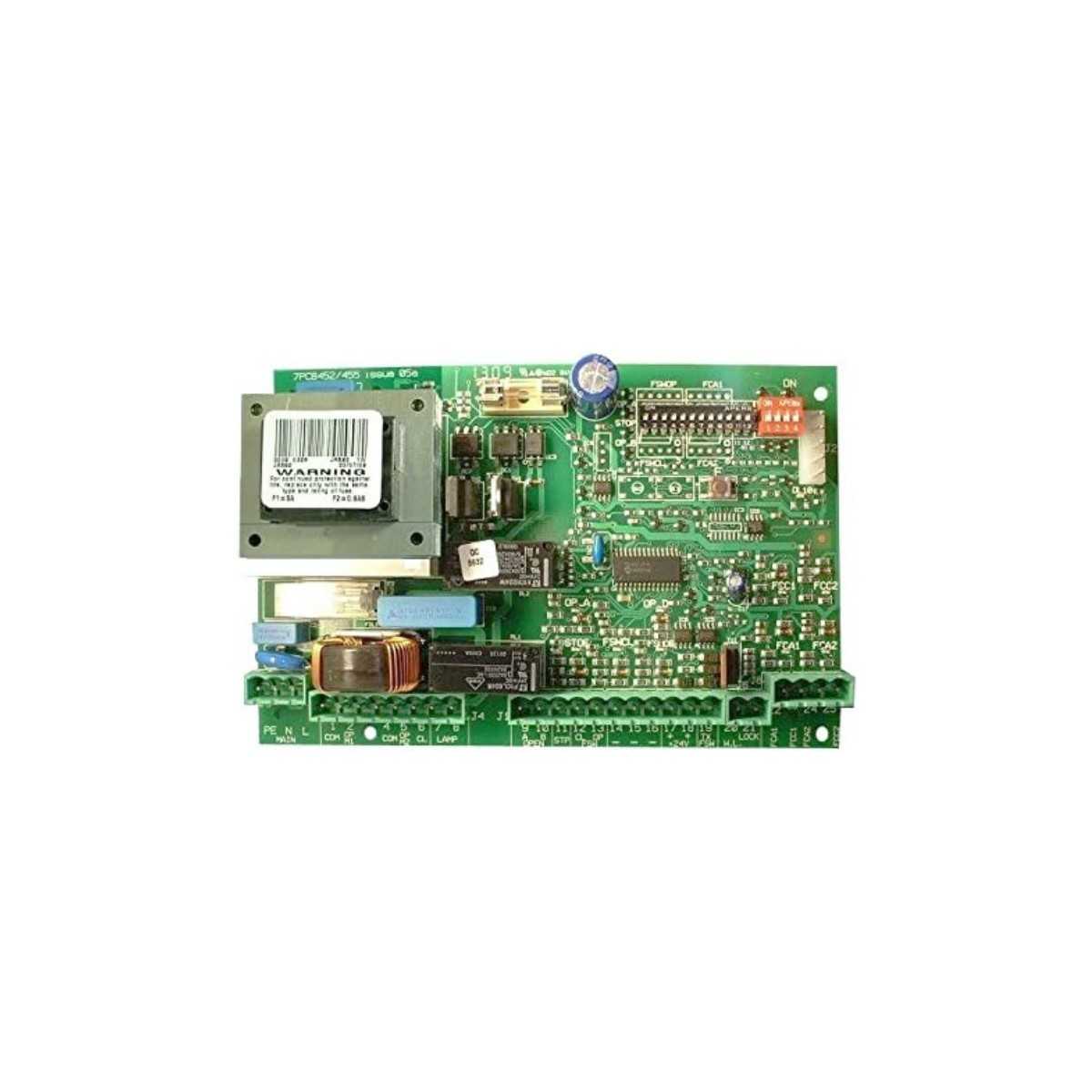

The JA592 GENIUS control unit is an electronic board designed for the control of automatic gate automations with 230V motors, compatible with numerous systems of the FAAC-GENIUSfamily.

Thanks to the electronic platform shared between the two brands, this control panel can be considered equivalent to the FAAC 455D, 452 MPS, 401, 402 and 450 MPS boards, making it an ideal solution for replacing faulty or obsolete control panels in existing systems.

The control unit is programmed using dip-switches and trimmers, a simple and reliable system that allows you to quickly configure all the main automation functions. Operation diagnostics are entrusted to control LEDs, which indicate the status of the inputs and allow you to quickly check if the safety devices are correctly closed.

On the board there is also the connector for FAAC and GENIUS radio receivers, which allows you to manage the system's radio controls. It is important to know that the receiver is not integrated into the control panel and must therefore be installed separately. In the case of replacing an existing control panel, it is possible to remove the receiver from the old board and insert it directly on the JA592, thus maintaining the same remote controls already in use.

The board also has inputs for limit switches, a feature necessary for the management of motors that require this type of control during the opening and closing phases.

If I have a fault on the 455D FAAC control panel, can I use the JA592?
Yes, the JA592 and FAAC 455D are technically equivalent powerhouses. The main difference concerns the programming system:

• the 455D uses a display,

• the JA592 uses dip-switches and trimmers.

From a functional point of view, the control panels perform the same operations and the radio receiver can simply be moved from the old 455D to the new JA592.

If I have remote controls FAAC can I use the JA592 GENIUS?
Yes, you can. However, it must be remembered that the JA592 control panel does not have an integrated radio receiver. To use the remote controls already present on the system, simply move the receiver from the control unit FAAC faulty to the new JA592.

ATTENTION – An alternative compatible control panel is also available on our website

If you are looking for an even more convenient solution, the SW200 model YAW compatible control panel is also available on our website.

This power plant has been designed to be perfectly compatible with this type of plant and has some very interesting features:

• Same terminal blocks as the JA592, so easy replacement in existing systems

• connector for FAAC or GENIUS radio receivers, exactly like the original control panel

• Additional inputs and outputs to handle additional automation functions

• excellent quality/price ratio for the replacement of faulty control panels

You can find the SW200 control panel:

• by scrolling down this page to the recommended products section, or

• by typing SW200 into our site search.

Technical characteristics of the JA592 GENIUS control unit

• Supply voltage: 230 Vac

• Maximum Motor Load: 800W

• Maximum accessory load: 500 mA

• Accessory power supply: 24 Vdc

• Maximum electric lock load: 15 VA

• Operating environmental conditions: -20°C / +55°C

• Primary protection fuse: 5 A

• Accessory line fuse: 800 mA

• Sizes: 165 × 117 mm

The JA592 GENIUS therefore represents a reliable and widespread solution for repairs or replacements of FAAC compatible control units, allowing you to quickly restore the operation of many existing systems without having to replace the entire automation.
