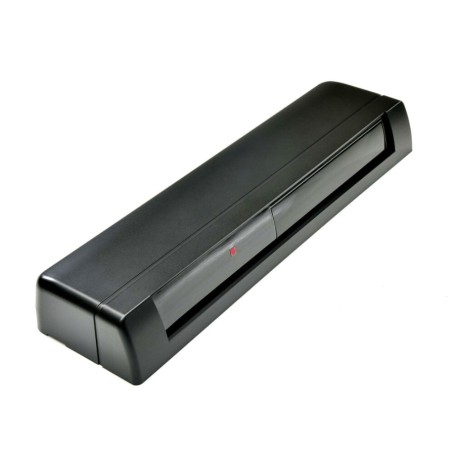

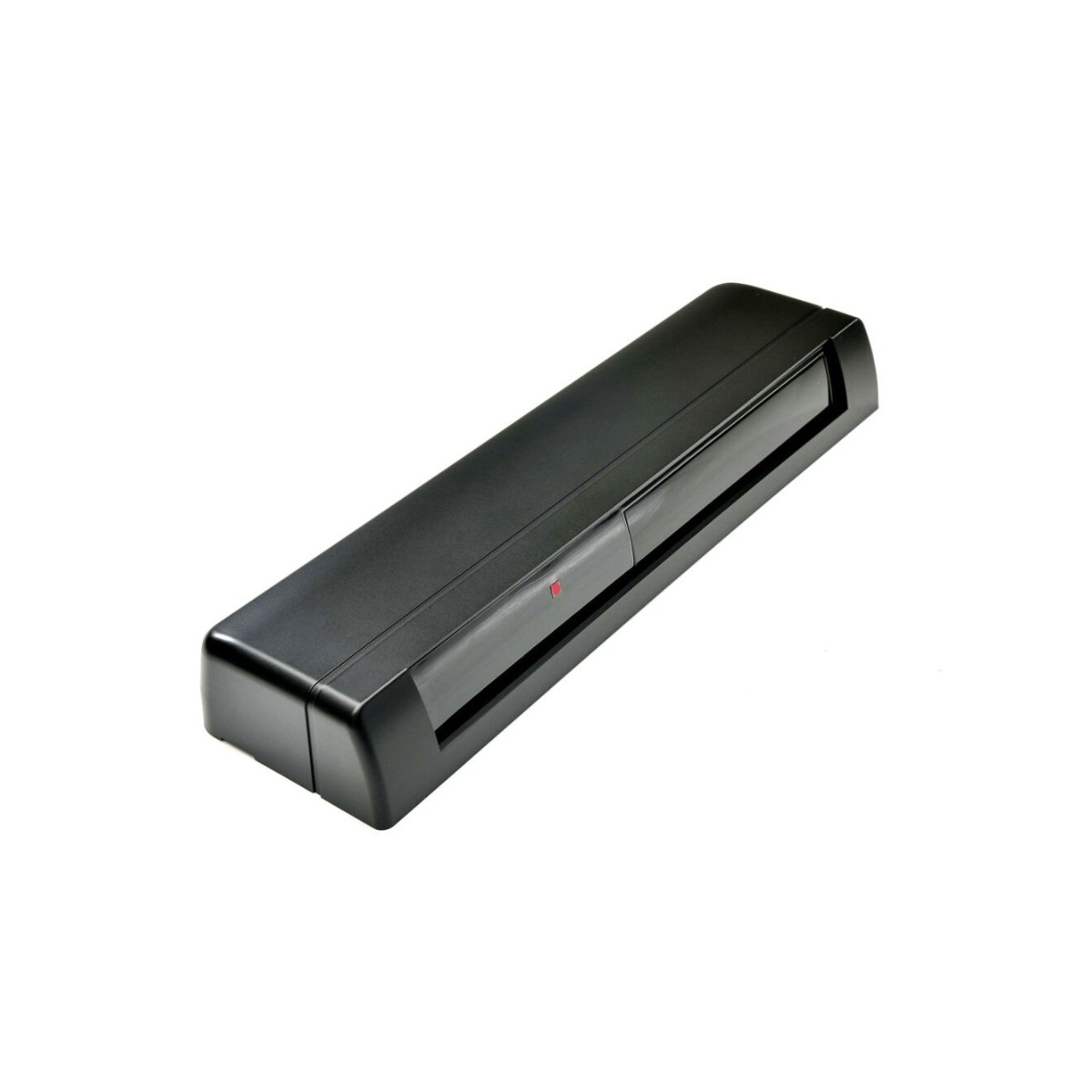

3H-IR14C HOTRON Infrared Sensor for Automatic Sliding Doors

The HOTRON 3H-IR14C is a state-of-the-art active infrared sensor designed to ensure both automatic activation and maximum user safety in the vicinity of automatic sliding doors. Thanks to its dual relay output technology, it provides reliable and constant protection, making it compliant with the EN16005 regulations for pedestrian safety.

The extremely compact design and intuitive adjustments make it perfect for installations where space is limited, without compromising on performance.

Key features:

• Complies with EN16005 standard:
  Double relays for supervised safety, essential in modern automation systems.

• Active Infrared Technology:
  It ensures precise detection of presence and movement, preventing accidental closing.

• Adjustable Detection Area:
  Maximum flexibility to adapt to the specifications of the installation environment.

• Compact design:
  Only 210 mm long, 59 mm high and 28.5 mm deep. It requires only 37 mm of vertical space.

• Easy Installation:
  Compatible with optional mounting brackets for flush or wall installations.

Specifications:

• Model: 3H-IR14C

• Detection Type: Active infrared

• Installation height: 2000 mm to 3000 mm

• Attendance Timer: 2 s / 30 s / 1 min / infinity

• Degree of protection: IP54

• Power supply: 12 - 24 V AC/DC ±10%

• Power Draw:

  • 12 VAC: max 1.3 VA

  • 24 VAC: max 1.5 VA

  • 12V DC: Max 65mA

  • 24 V DC: max 35 mA

• Operating temperature: -20°C to +60°C

• Weight: approx. 180 g

• Available colors: black (3H-IR14C/BL) and silver (3H-IR14C/S)
