KRX-UG-433 Outdoor Receiver Kit with 2 ZAP-2 Remote Controls from UGATE

Universal spare parts kit with outdoor receiver that can be connected via terminals to the control unit and 2 ZAP-2 UGATE radio controls.

This product can be used in all those situations in which the control unit has been replaced and it has been realized that the receiver was also faulty, or if we want to update our remote control fleet with the new remote controls at 433 MHz certified frequency. The outdoor receiver can be powered 24Vac and dc so its power supply can be taken from the accessory output (photocells) of the control panel, while the dry contact relays can be connected to the start, open and pp inputs of the control units.

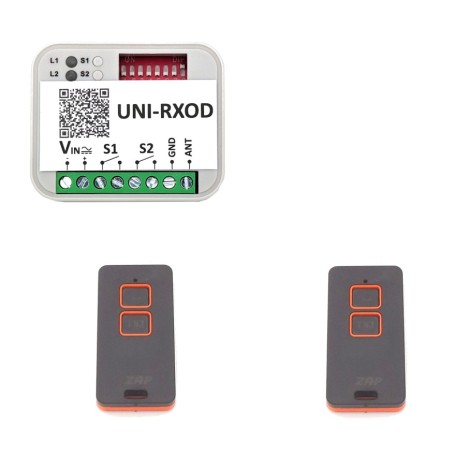

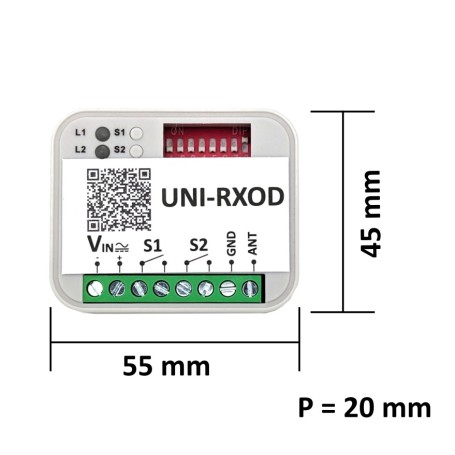

The receiver supplied as seen in the photo is extremely small and therefore can be placed anywhere in the system, also equipped with an antenna input to increase the radio range.

In addition to the 2 remote controls provided, the receiver can store another 178 codes.
