This kit is not present in the official catalog, but was born from a concrete need of installers: to offer a professional, intensively used and completely reversible condominium solution, an alternative to classic irreversible kits.

It is an exclusive UGATE configuration, designed for applications on swing gates up to 4 meters per leaf, in multi-family residential contexts and small condominium complexes.

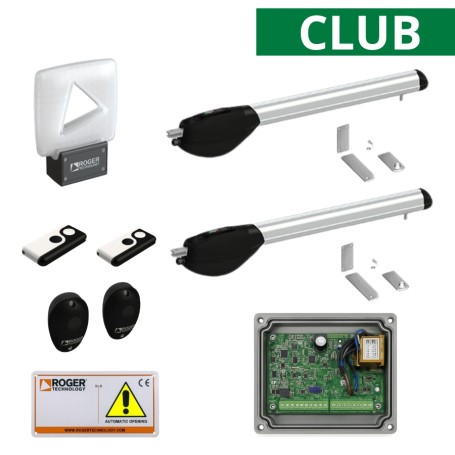

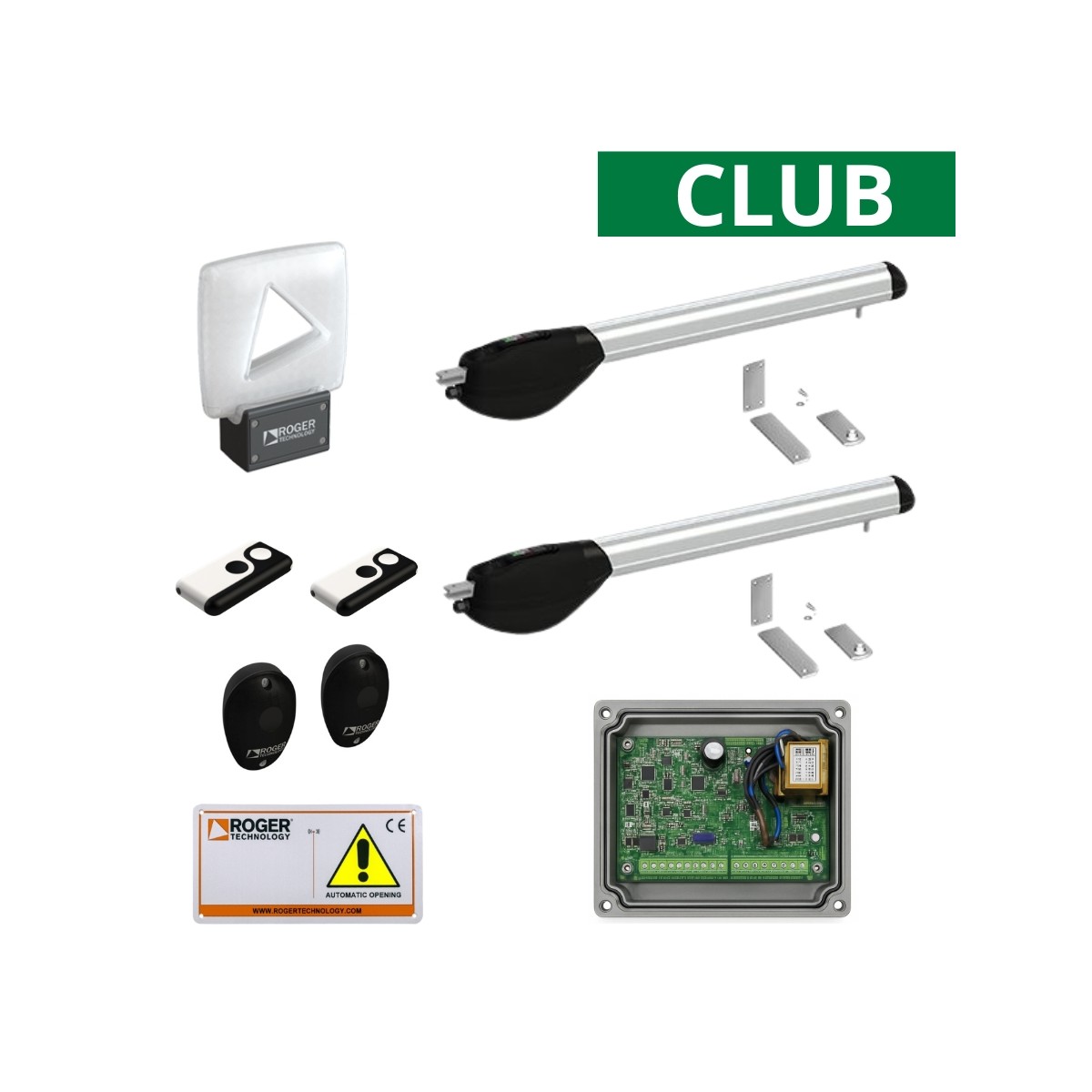

Composition of the kit

The kit consists of:

• 2 BR20/400/R reversible brushless actuators

• 1 36V EDGE1/BOX digital control unit with integrated 2-channel radio receiver

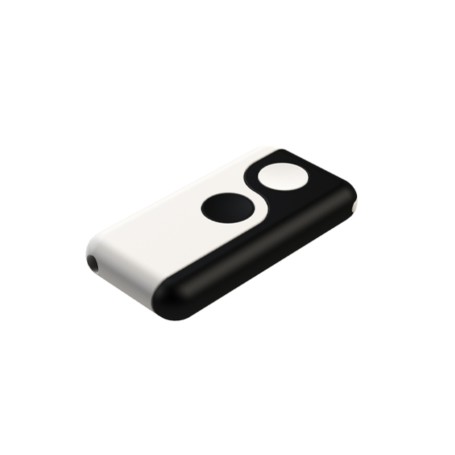

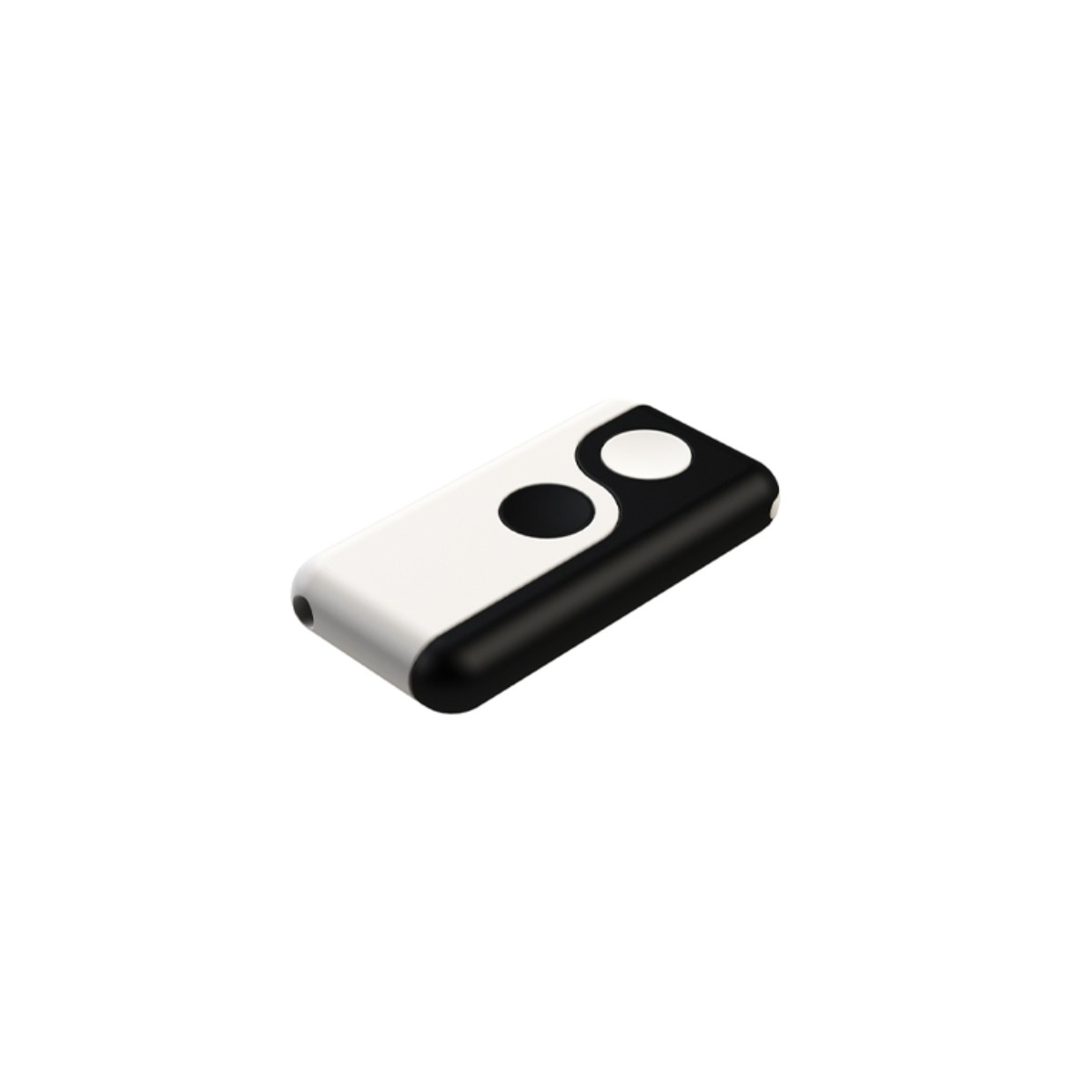

• 2 Remote Controls

• 1 Pair of safety photocells

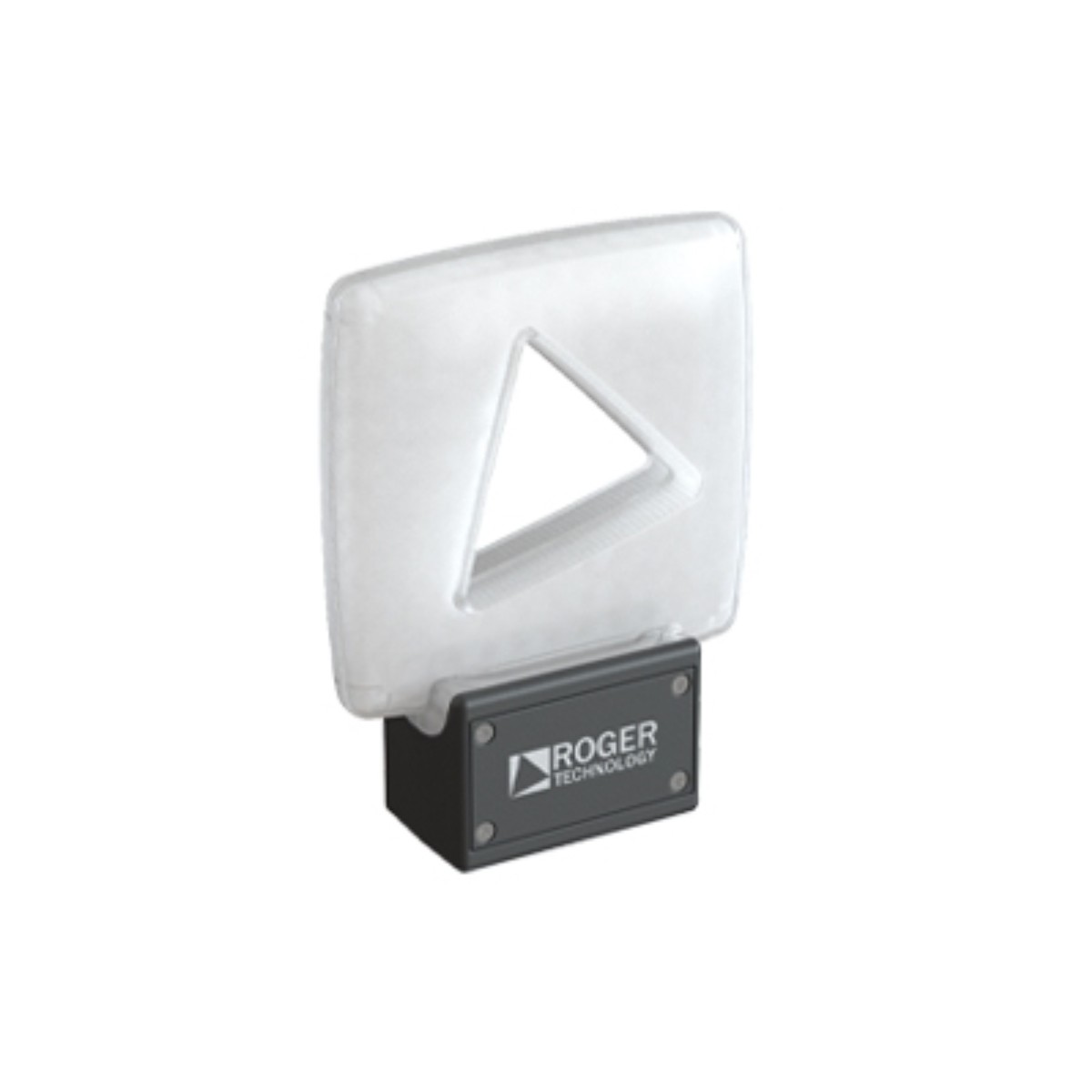

• 1 x 24V flashing light

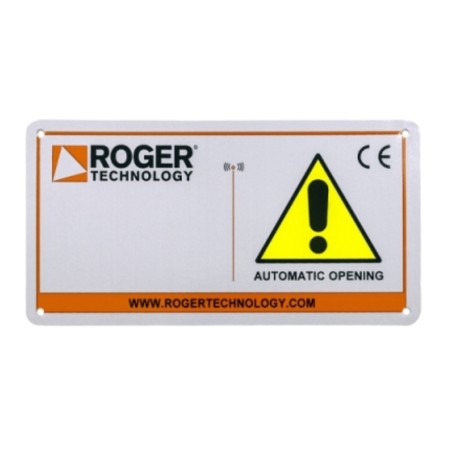

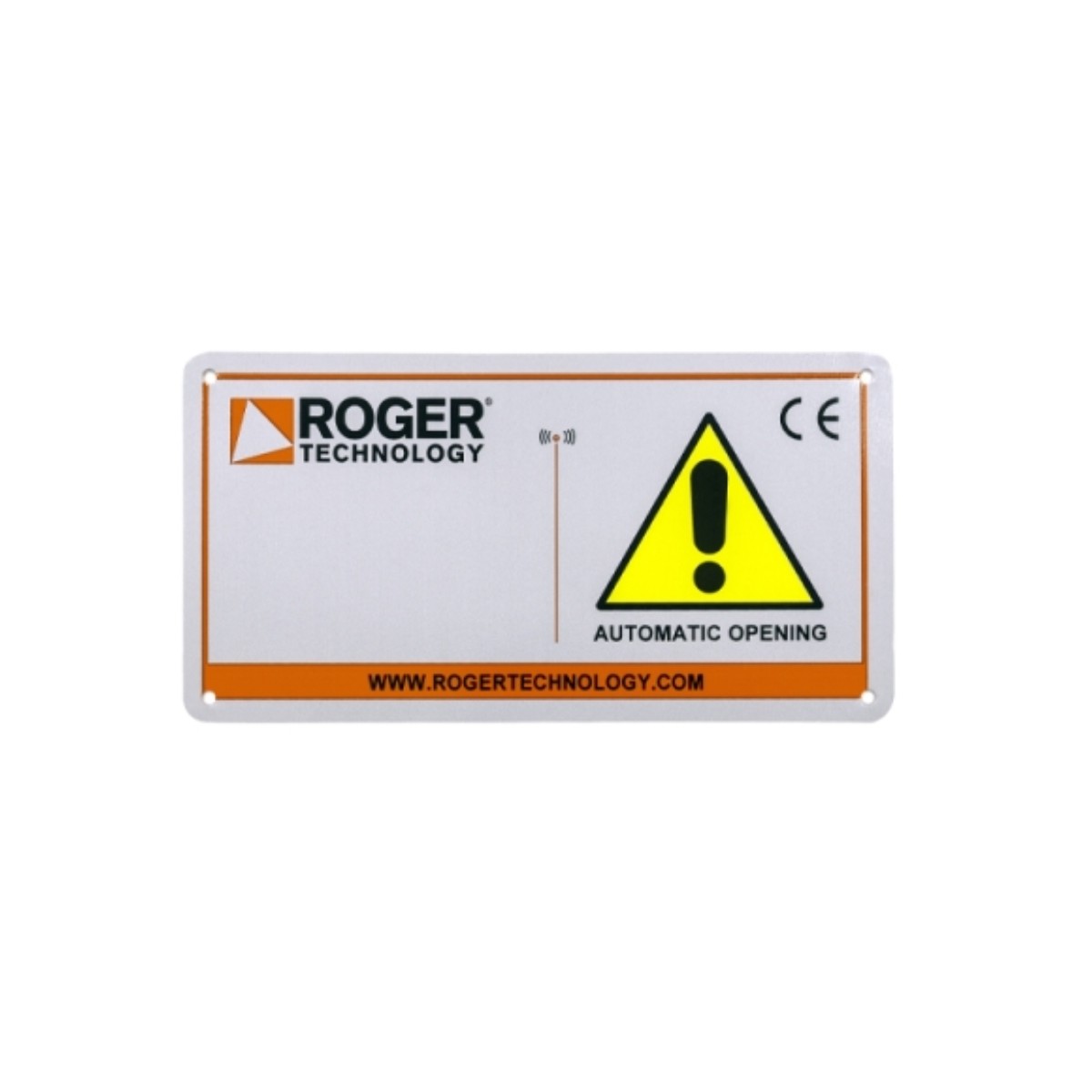

• 1 Warning sign

Motors and power plant are manufactured by ROGER Technology.

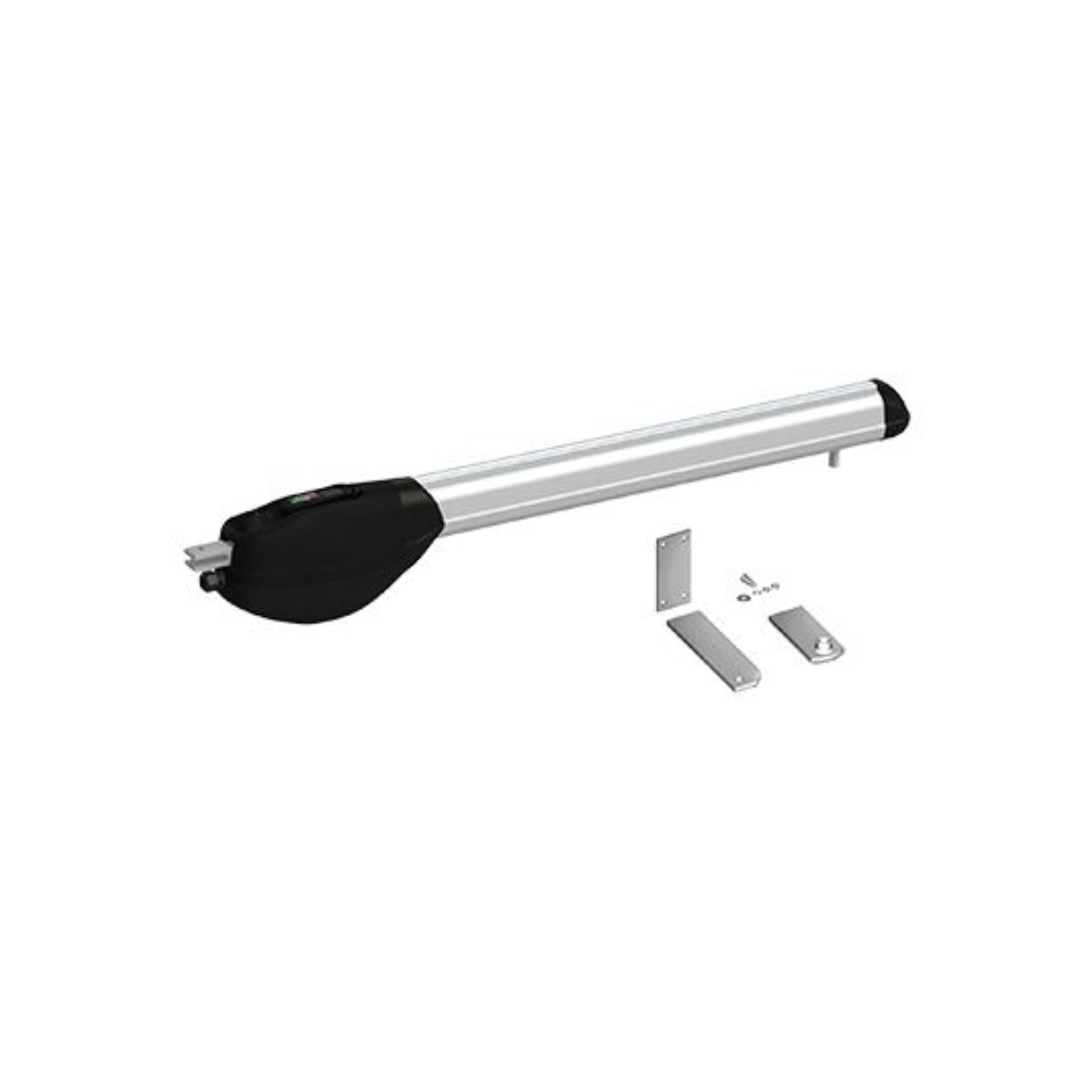

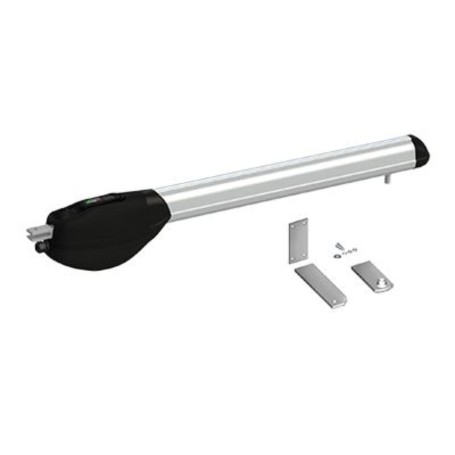

BR20/400/R Motors – Reversible, Brushless, Super Intensive

BR20/400/R actuators are 36V low-voltage brushless electromechanical motors designed for super intensive use.

Key features:

• Motor power: 36V

• Power: 210W

• Thrust: 100 – 1500 N

• Useful stroke: 520 mm

• Manoeuvring speed: 2.22 cm/s

• Opening time: 18–28 seconds

• Native SENSORLESS digital encoder at 48 PPR

• Up to 1000 day cycles (24 hours non-stop)

• IP44 rating

• Reversible mechanical gearbox

The real advantage: REVERSIBILITY

The gearbox is reversible.

This means that:

• In the event of a blackout, there is no need to unlock the engine with a key

• The gate can be pushed manually

• There is no risk of being locked out in the absence of secondary accesses

It is the ideal solution for apartment buildings where there is no alternative pedestrian entrance.

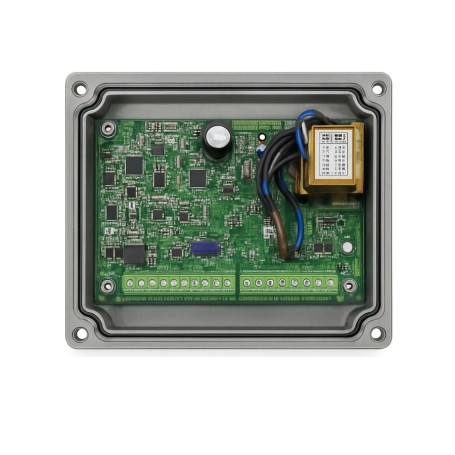

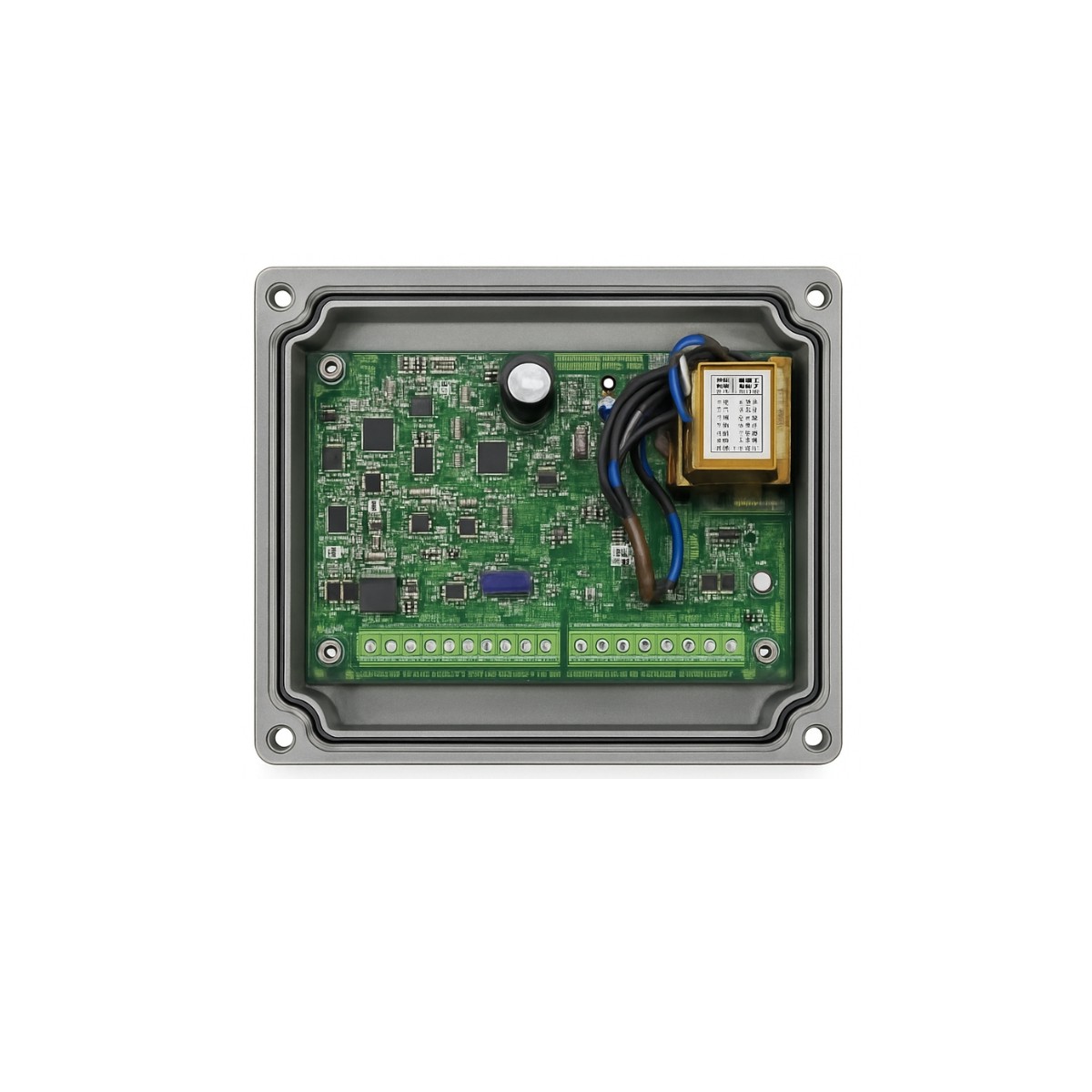

EDGE1/BOX Control Panel – 36V Digital Control

The EDGE1/BOX digital control panel is designed for the management of 2 36V brushless motors.

Main Specifications:

• Line power: 230V AC 50/60Hz

• Stand-by consumption: 0.5W

• Management of 2 brushless motors

• Maximum power per motor: 250W

• Accessory output: 24V DC – 20W max

• Electric lock output: 12V DC – 15W max

• Flashing Output: 24V DC – 25W max

• IP54 rating

• Integrated 2-channel radio receiver

• Optional backup battery ready

36V digital technology allows for greater energy efficiency, precise torque control and better safety management.

Why this kit is ideal for condos

✔ Real Intensive Use
✔ High-efficiency brushless technology
✔ Native digital encoder for electronic torque control
✔ Mechanical reversibility (immediate safety in case of emergency)
✔ High number of daily cycles
✔ High-performance 36V digital electronics

Compared to classic 230V irreversible kits, this configuration offers:

• Increased safety in the event of a power failure

• Less mechanical stress in the long run

• Longer life

• Better force management and compliance with regulations

Recommended Applications

• Small and medium-sized condominiums

• Residential complexes

• High-frequency access

• Installations without secondary pedestrian access

Suitable for swing gates with leaf up to 4 meters with mechanical stops in opening and closing.

Exclusive UGATE

This kit is a technical configuration designed and composed of UGATE to offer installers an alternative professional solution oriented to the condominium market, not present as a standard kit in the catalog.

It is intended for installers and professionals in the sector who are looking for reliability, intensity of use and real operational safety.
