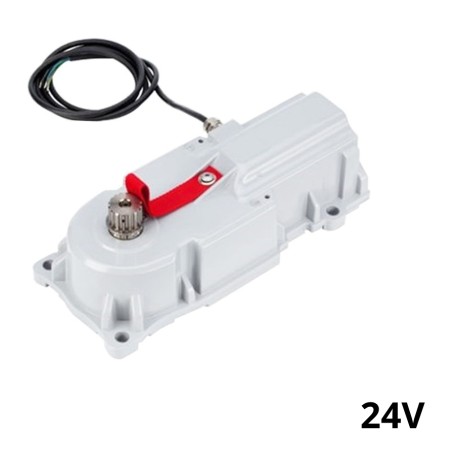

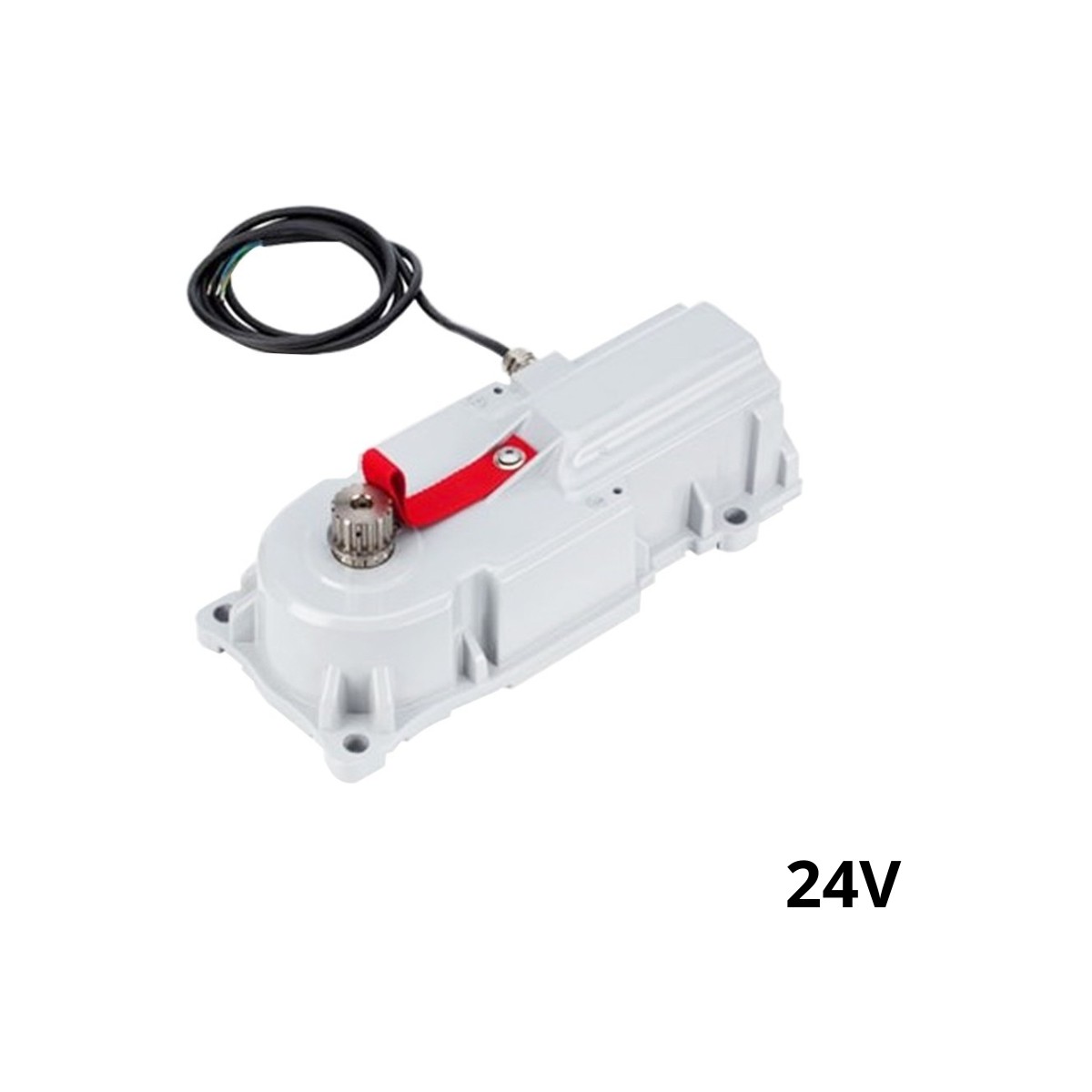

FAAC 10675301 770N 24VDC – Low Voltage Electromechanical Underground Actuator for Swing Gates up to 500 Kg

The FAAC 10675301 Model 770N 24VDC Underground Actuator is a high-performance professional solution for swing gate automation, designed for safety, precision of movement and intensive use.

Thanks to the 24V power supply, this operator offers more advanced control than the 230V versions, allowing automatic reversal of movement in the event of an obstacle and more precise management of slowdowns and work times. This makes it particularly suitable for residential and condominium contexts with frequent use.

The motor is completely self-supporting and can handle leaves weighing up to 500 kg and lengths up to 3.5 meters (with electric lock). The underground structure allows a minimal aesthetic impact, keeping the gate clean and without visible obstructions.

The internal mechanics are made entirely of metal and bronze, without plastic components, ensuring maximum strength and durability. The double-layer polyester paint guarantees high resistance to corrosion and allows installation even in particularly aggressive environments such as marine areas.

There is provision for manual release by means of a lever with a personalized European key (not included), essential in the event of a power failure.

Important note on compatibility:
This operator is completely replaceable with the ROLLER 24V model by GENIUS, a brand of the FAAC group. The two products are equivalent in structure and technical characteristics, making them perfectly interchangeable. The GENIUS model is often a cheaper solution with the same performance.

Package Contents:

• 1 FAAC 770N 24V Actuator
• Sprocket attachment bracket
• Connecting rod bracket
• Accessory kit (nuts and bolts)

Technical features:

• Mains power supply: 220–240V ~ 50/60 Hz
• Motor: 24V with brushes
• Maximum power: 70 W
• Maximum torque: 330 Nm
• Angular velocity: 6°/s
• Maximum leaf weight: 500 Kg
• Maximum leaf length: 2 m (up to 3.5 m with electric lock)
• Opening angle: up to 110° (140° and 180° with accessories)
• Operating temperature: -20°C ÷ +55°C
• Degree of protection: IP67
• Engine weight: 12 Kg (14 Kg with supporting case)
• Duty cycle: continuous use
• Motor dimensions: 362 x 153 x 127 mm
• Carrier case dimensions: 430 x 307.5 x 214 mm

Note:
The electronic control unit is not included and must be purchased separately.

Ideal solution for professional installers who need reliable, safe and intensive underground automation, with all the advantages of low voltage technology.
