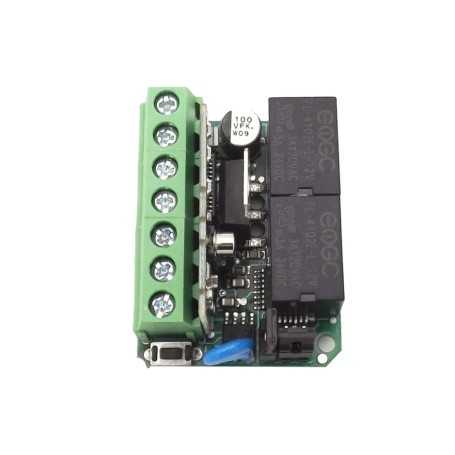

UNI-RX433-2-PCB Universal Receiver 433MHz Fixed and Rolling-Code

Have you replaced the automation control unit and realized that the old receiver is incompatible? Do you want to adapt your remote controls to the latest technologies and frequencies? Is your gate receiver faulty?

These are just 3 of the most common situations in which our recipient can save the day. In fact, thanks to the technology applied to it, this electronic board can receive gate opener remote controls with a frequency of 433MHz and store up to 180 codes in its memory, both fixed code and HCS rolling-code. To translate, it can store some of the most well-known brands of remote controls in circulation such as BFT, FAAC, GIBIDI, PROTECO, GENIUS, etc.

The dimensions are really very small and for this reason this receiver can be installed anywhere.

The power supply is 12/24Vac and dc so you can easily power it from the accessory outputs of your control units and then connect relay 1 or relay 2, as you prefer, to the start/pp contact of the control unit.

A popular programming mode is the ability to store the remote control on relay 1, relay 2 or both, and this choice can be made for each button you program. In addition, the relays can operate either in pulse mode or in bistable mode. These last 2 choices concern all the remote controls programmed on a relay, in fact the choice is made by moving a jumper.

Another important feature is the fact that the relays are physical, they are not open collectors and therefore the compatibility with all the control units in circulation is extreme.

Last but not least, the terminal block, which is also very convenient, allows the connection of the antenna, to improve the radio range.
