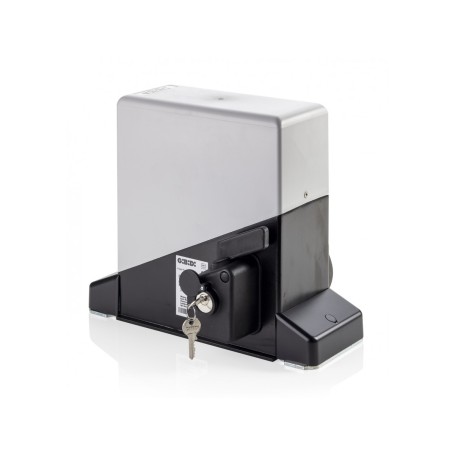

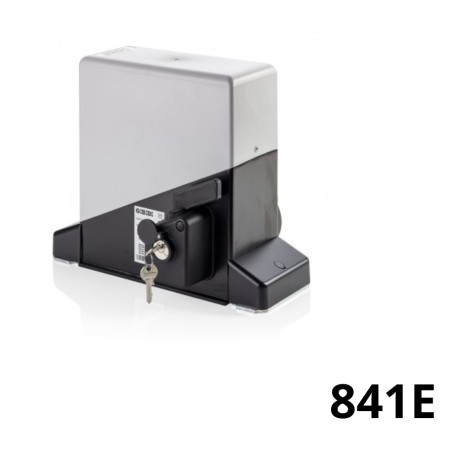

This type of operator fully replaces the older PASS 8 models. It is also equipped with the new SC230E control unit which has an on-board encoder for slowing down and anti-crushing, so it no longer requires the 4 limit switches on the rack like the old PASS.
Some old models of the GIBIDI called SL800 with a 230V motor had a different cover but in reality they were PASSES and can be replaced in all respects with the new PASS841E. If during the installation of the old SL or PASS the original foundation plate was walled GIBIDI there will be no need to replace it and therefore the original one will be fine. If it needs to be replaced, however, you will have to purchase the AJ92190 accessory.
WARNING: the package does not include the anchor plate which must be purchased separately if necessary. If you are buying this operator to replace an old PASS, you can reuse the old anchor plate the distances are the same.
The central on board is the new SC230E improved and equipped with many safety technologies. From the optical reading of the encoder sensor, to the inclusion of the reed limit switch readers. Self-learning and slowing down complete this new power plant. Thanks to the new technology for deceleration, double limit switches on the rack are no longer necessary, so a torque is enough to signal to the motor when the gate has closed or opened.
The control panel also incorporates the connector for the GIBIDI plug-in receivers (so old receivers can also be reused). Be careful, however, that the receiver is not included in this product and if necessary must be purchased separately with the new MAKO remote controls.
Even if your old PASS had a mechanical clutch, this in the PASS8 Sliding gate gear motor up to 600 Kg with 230V motor in oil bath complete with control unit.41 is no longer provided since the control unit incorporates the anti-crushing system, force adjustment and electronic braking.
PASS 600 - 800 SERIES GENERAL DESCRIPTION:
230 vac irreversible electromechanical gearmotor for medium-sized sliding gates and weight (up to 800 kg) suitable for residential and condominium use.
EASY TO INSTALL
Control unit in optimal position for the installer. Possibility of adjustments on the horizontal and vertical axis.
QUIET AND ROBUST
Made with large gears, heat treated and in complete oil bath. Painted aluminum body that guarantees reliability over time.
PERFORMING
Special engines in oil bath for excellent performance even with heavy use, versions with mechanical twin-disc clutch. New irreversible and anti-slip gear unit.
TECHNOLOGICAL AND SAFE
Built-in control unit equipped with all inputs for safety devices, integrated encoder for easy programming and for adjusting the anti-crushing sensitivity. The highest level of safety, as required by the EN 12453 standard.
DESIGN
The most compact in its class thanks to the direct horizontal motor, only 10 cm thick.
SPECIFICATIONS:
Use: INTENSIVE
Frequency of use: 0.4
Motor power supply: 230 Vac - 50/60 Hz
Power consumption: 400W
Degree of protection: IP55
Speed: 160 mm/s (9.6 m/min) - Z=16 M4
Max torque: 24 Nm
Torque adjustment: MECHANICAL/ELECTRONIC
Speed adjustment: YES
Max. leaf weight: 800 Kg
Operating Temp.: -20°C +60°C
Thermal protection: 140°C
Lubrication: PH-01 GBD OIL
Operator weight: 12 Kg
